Eazy Pod Complete (inc airpump kit +18w UV)

Complete filtration with UVC

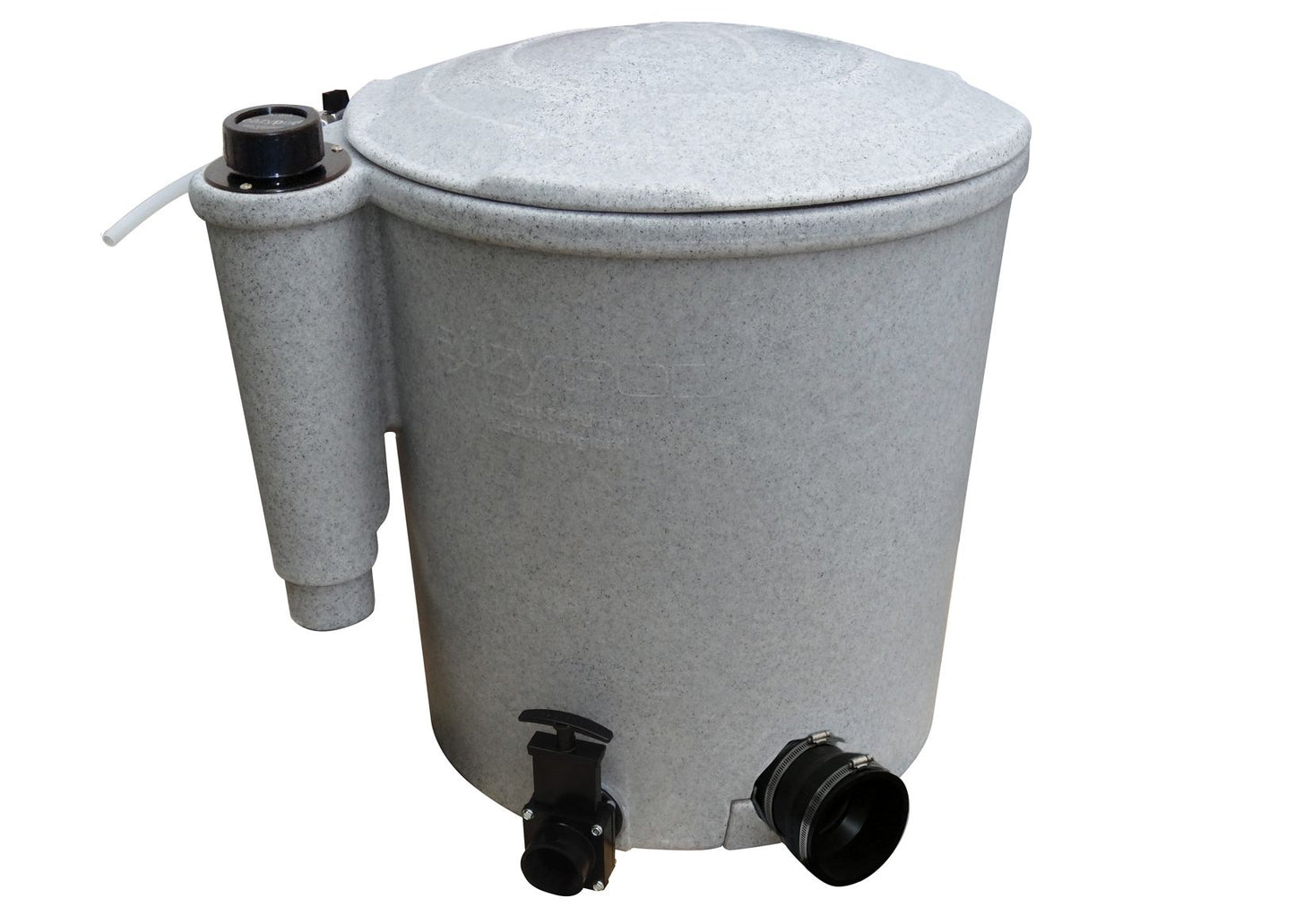

A compact member of the Nexus family, the EazyPod Complete is a mechanical and biological filter system for garden ponds up to 10,000 litres. The EazyPod Complete utilises static K1 Micro, which provides enhanced biological benefits, even when using the EazyPod Complete solely as a mechanical waste filter. Available in Grey or Granite Green colours.

Overview

Unlike the EazyPod and EazyPodAir, the EazyPod Complete benefits from having an integrated 18 Watt UVC built in to the inlet section of the filter. This makes it a complete filter system in one, helping to eradicate green water, therefore delivering crystal clear and healthy water for your fish.

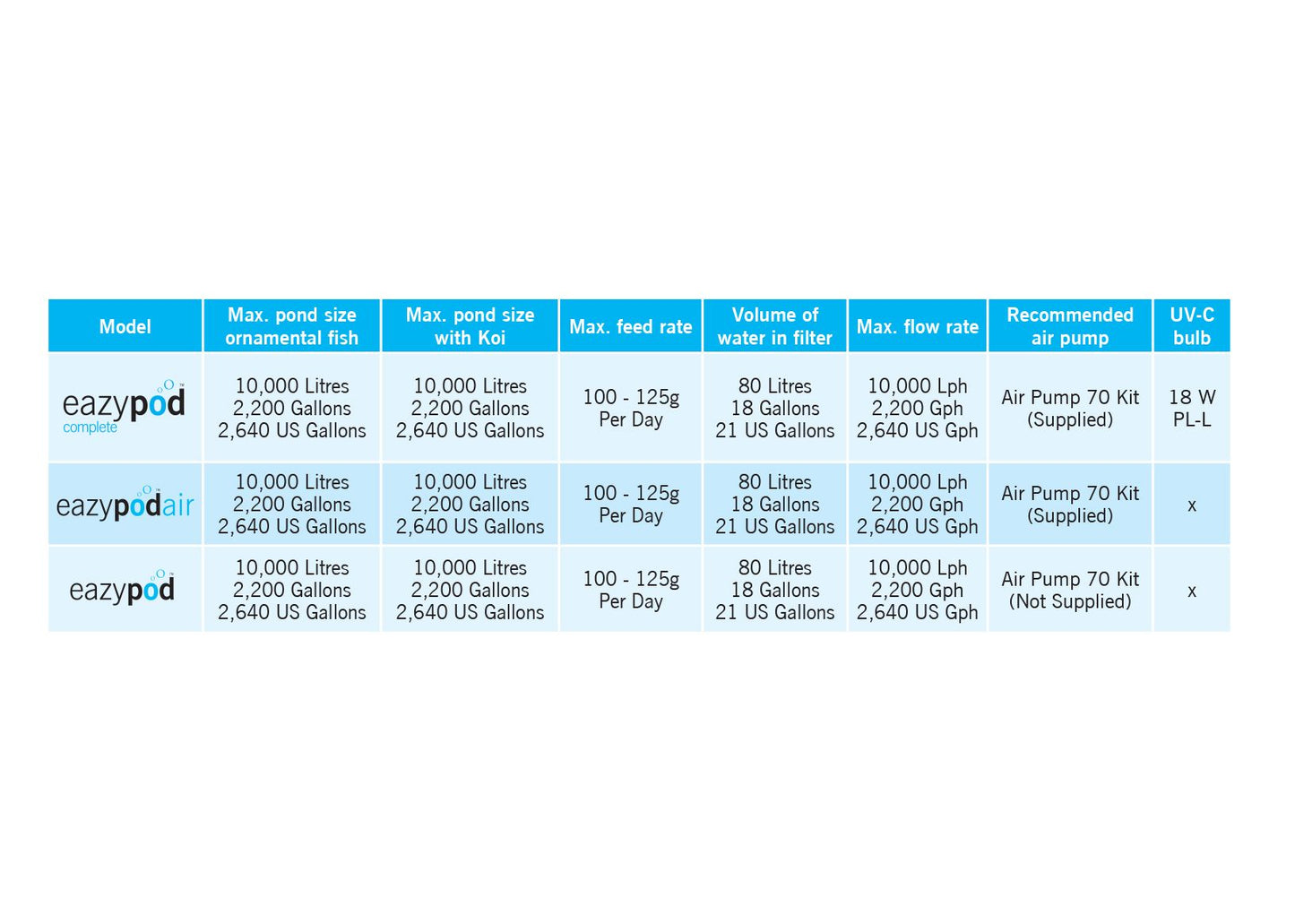

Specifications

Dimensions

How the EazyPod Complete works

Water from the pond enters the EazyPod Complete via the inlet, cascading around the 18 Watt UV-C bulb, where any algae will be exposed to the UV-C radiation.

The water then flows around the circumference of the outer chamber of the EazyPod Complete, passing through the stainless steel grill causing many of the larger solids to be filtered out and settle in the base of the outer chamber. This is the first stage of mechanical filtration.

As water enters the central chamber, through the stainless steel grill, the fine smaller solids become trapped in the mass of K1 Micro. Bio-films build up on the protected surface area within each piece of media, allowing biological filtration to take place.

After passing through the K1 Micro, the clean water then rises and overflows into the inner return pipe and flows back to the pond via the outlet.

The EazyPod Complete is incredibly simple to clean. The connected air pump is used during the cleaning cycle to agitate the K1 Micro to free up any debris and waste that has built up within the filter.

All EazyPod Complete models are supplied with a 70 litre per minute air pump and accessory kit.

Installing the EazyPod Complete

Water from the pond enters the EazyPod Complete via the inlet, cascading around the 18 Watt UV-C bulb, where any algae will be exposed to the UV-C radiation.
The water then flows around the circumference of the outer chamber of the EazyPod Complete, passing through the stainless steel grill causing many of the larger solids to be filtered out and settle in the base of the outer chamber. This is the first stage of mechanical filtration.
As water enters the central chamber, through the stainless steel grill, the fine smaller solids become trapped in the mass of K1 Micro. Bio-films build up on the protected surface area within each piece of media, allowing biological filtration to take place.
After passing through the K1 Micro, the clean water then rises and overflows into the inner return pipe and flows back to the pond via the outlet.
The EazyPod Complete is incredibly simple to clean. The connected air pump is used during the cleaning cycle to agitate the K1 Micro to free up any debris and waste that has built up within the filter.
All EazyPod Complete models are supplied with a 70 litre per minute air pump and accessory kit.

Installing the EazyPod Complete

PUMP-FED INSTALLATION ONLY
By this we mean that if your pump is going to be used to supply the water to the filter, and the filtered water then returns back into your pond via gravity, i.e. down a waterfall, or through a large diameter pipe, this is referred to as PUMP FED (i.e. the water is fed to the filter using a pump).
