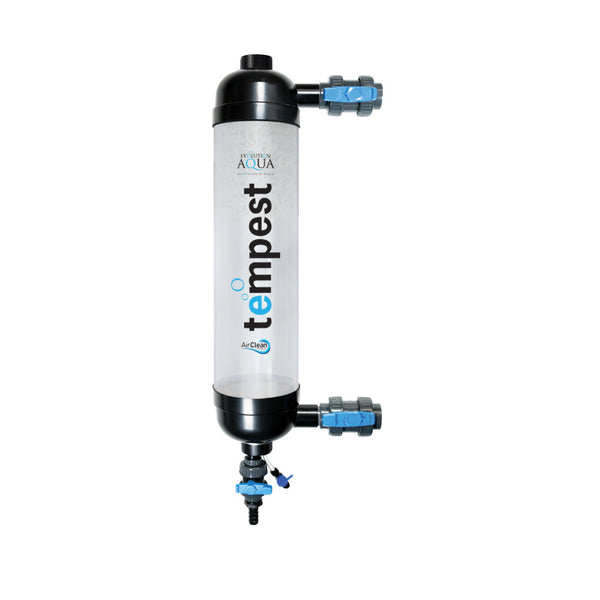

Evolution Aqua Tempest
Evolution Aqua Tempest
Innovative Polisher For Ponds

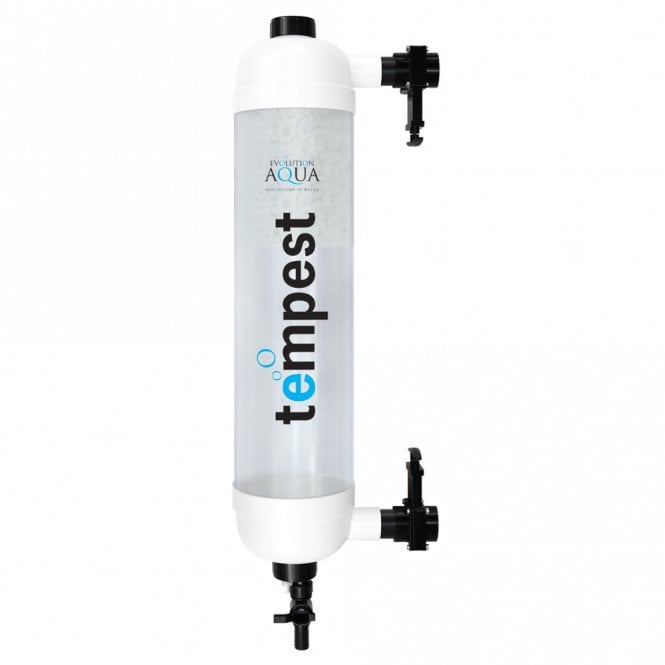

The NEW Tempest Filter is an innovative polishing system for ponds. The Tempest Filter uses our latest filtration media, K+Media, to deliver crystal clear, healthy water.
Designed to be used in conjunction with any filtration system, the Tempest Filter offers additional mechanical and biological filtration. The Tempest Filter can be installed on a variety of set-ups and can be used on quarantine systems or as astandalone filter on smaller ponds up to 5,000 Litres / 1,100 Gallons.
Patent Pending Design
The Tempest filter is easy to install and is simple and quick to clean, by way of a unique, patent pending air syphon design. During the cleaning process, air is drawn into the filter as it empties which causes the water to agitate, effectively cleaning the K+Media.
Independently Tested Filter Media
Using Evolution Aqua’s K+Media as the filter media, particles down to one micron can be filtered. On a single pass, testing has proven our media capable of removing all particles down to 25 micron when used at the optimum flow rate. Not only that, K+Media is the result of extensive research and development and is moulded with minerals for faster maturation times.
Evolution Aqua filter media has been independently tested by Cranfield University and the IFTS (Institut de la Filtration et des Techniques Séparatives). IFTS International Filter Testing Services is the international reference for solid-liquid separation. Founded in 1981, IFTS is an independently regulated, ISO 17025 accredited, laboratory and research center focusing on liquid filtration and separation science. IFTS quality management system is certified to ISO 9001:2015.

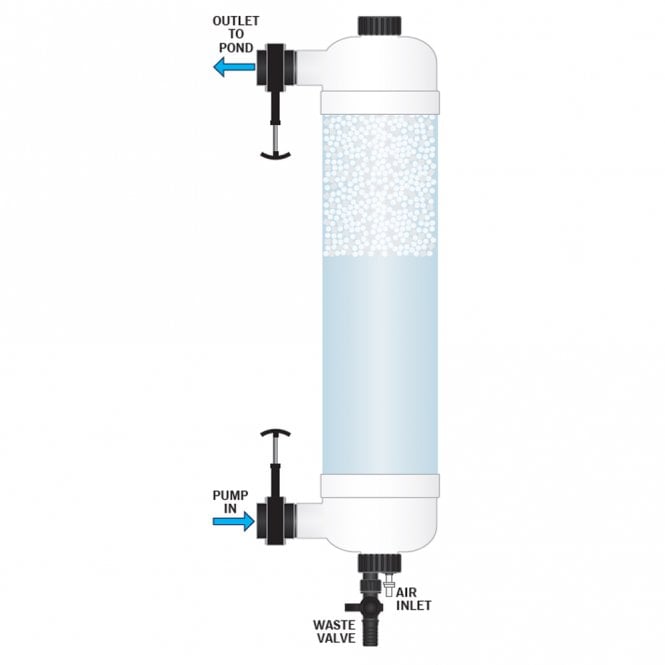

How The Tempest Filter Works
Water is pumped up through the Tempest Filter. The K+Media moves to the top of the filter, becoming a mechanical barrier that traps debris as it flows through the system. Waste is trapped in the K+Media until the cleaning cycle dislodges it and it gets flushed away.
How To Clean The Tempest Filter
The Tempest Filter can be cleaned in matter of minutes, by simply turning the pump off, closing slide valves and opening the waste valve tap.
Specifications
Max Pond Size | Inlet | Outlet | Drain Size | Max Flow Rate | Optimum Flow Rate | Volume of Water in Filter | Dimensions | Amount of K+Media Supplied |
---|---|---|---|---|---|---|---|---|
5,000 Litres 1,100 UK Gallons 1,320 US Gallons |
1½” UK / USA 50mm EU |
1½” UK / USA 50mm EU |
1” UK / USA 32mm EU |
7,500 Litres/hr 1,650 UK Gallons/hr 1,980 US Gallons/hr |
5,000 Litres/hr 1,100 UK Gallons/hr 1,320 US Gallons/hr |
27 Litres 5.9 UK Gallons 7.1 US Gallons |
1055mm x 250mm x 205mm | 7 Litres |

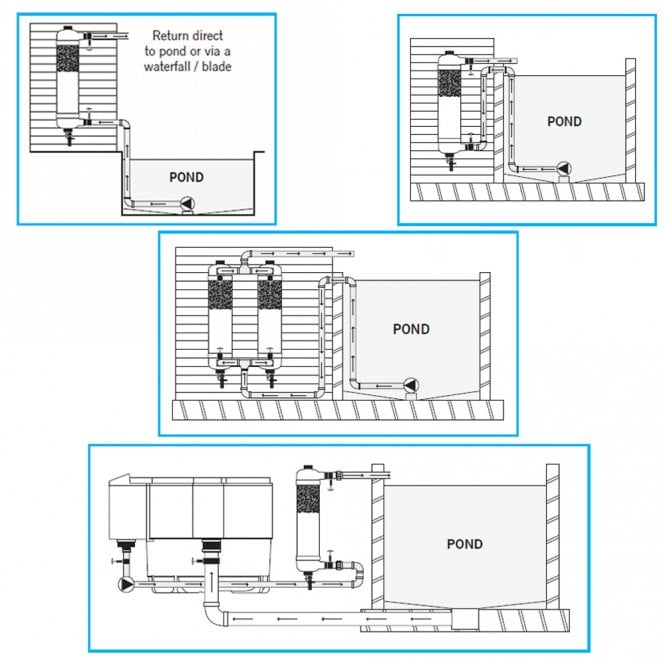

Installing the Tempest Filter
TYPICAL INSTALLATION ON A PRESSURISED SYSTEM
You can install a Tempest Filter on a pressurised system with a K1 Micro Bead, Nexus+, EazyPod. The slide valves on the Tempest Filter enable connection to 1½” pressure pipe.
The installation example shown below has a by-pass that will enable you to increase the flow through your pond while maintaining the optimum flow through the Tempest Filter. Installing ball valves on the pipe work will help you regulate the flow. The return from the Tempest and the K1 Micro Bead go back to the pond.
TYPICAL STANDALONE TEMPEST FILTER INSTALLATION
You can install a Tempest Filter on a quarantine system, or a standalone pond up to 5,000 litres, at the side of a pond or above the pond.
The slide valves on the Tempest Filter enable connection to 1½” pressure pipe. If installing the Tempest Filter using flexible hose you will need to fit a reducing sleeve (EA Code: M35-050) and a 1½” solvent stepped hosetail (EA Code: HOSETAIL15) inside each slide valve.
TYPICAL SKIMMER LINE INSTALLATION
You can install a Tempest Filter on a skimmer line.
The slide valves on the Tempest Filter enable connection to 1½” pressure pipe. If installing the Tempest Filter using flexible hose you will need to fit a reducing sleeve
(EA Code: M35-050) and a 1½” solvent stepped hosetail (EA Code: HOSETAIL15) inside each slide valve.
MODULAR TEMPEST FILTER INSTALLATION
On larger systems that require a higher flow rate, multiple Tempest Filters can be installed in a modular system. The slide valves on the Tempest Filter enable connection to 1½” pressure pipe. If installing the Tempest Filter using flexible hose you will need to fit a reducing sleeve (EA Code: M35-050) and a 1½” solvent stepped hosetail (EA Code: HOSETAIL15) inside each slide valve.
It is important that each Tempest Filter can be isolated using the slide valves so that cleaning can be carried out independently. Although on the installation diagram below we show two filters into one return line, independent return lines will allow you to observe the flow rate through both Tempest Filters and balance accordingly.
